Intermatic T104 24 Hour Dial Time Switch User Manual

t104 24 hour dial time switch

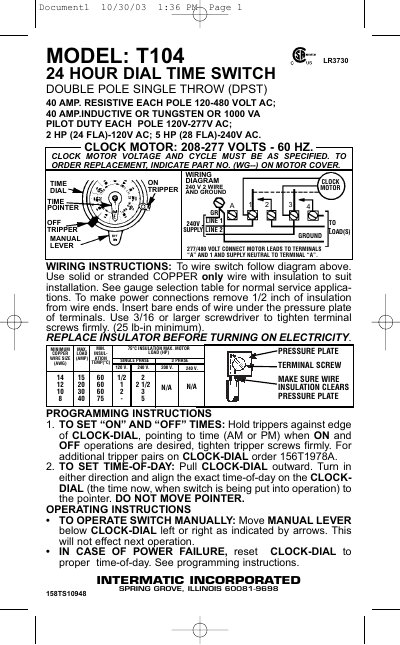

Intermatic T104 24 Hour Dial Time Switch User Manual - cover page
Brand
T104
Document type
User Manual
Language
English
Pages
1
File format
PDF
File size
26 KB
Published
06 August, 2012
Updated
30 September, 2023
MD5 checksum
1E5B58183AB460D6C300E37F2900DDC5
PDF
Intermatic T104 24 Hour Dial Time Switch User Manual PDF

About this manual

The document is a user guide for the Intermatic T104, a 24-hour dial time switch rated at 40 amps resistive per pole. It covers electrical specifications including voltage ranges (120-480V AC) and motor requirements.

The manual details how to wire the device using copper conductors, specifying minimum torque for terminal screws. It also explains programming procedures for setting ON/OFF times and adjusting the time-of-day pointer after a power failure.

What's inside

  • Wiring Instructions
  • Gauge Selection Table
  • Programming Instructions
  • Operating Instructions
  • Manual Operation

Specifications

Rating (Resistive)40 AMP. RESISTIVE EACH POLE
Rating (Inductive/Tungsten)40 AMP INDUCTIVE OR TUNGSTEN
Voltage Range120-480 VOLT
Clock Motor Voltage208-277 VOLTS - 60 HZ.
Terminal Screw Torque25 lb-in minimum

Frequently asked questions

How do I set the ON and OFF times?

Hold trippers against the edge of the CLOCK-DIAL, pointing to the desired AM or PM time, then tighten the tripper screws firmly.

How do I set the current time-of-day?

Pull the CLOCK-DIAL outward, turn it in either direction to align the exact time with the pointer, but do not move the pointer itself.

What should I do if there is a power failure?

Reset the CLOCK-DIAL to the proper time-of-day and follow programming instructions.
