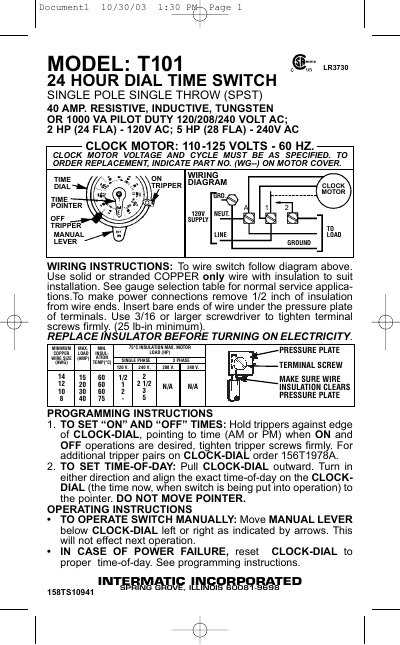

The T101 is a 24-hour dial time switch designed for single pole single throw (SPST) 40 amp resistive, inductive, tungsten or 1000 VA pilot duty loads. It operates at 120/208/240 volt AC and can handle up to 2 HP (24 FLA) at 120V AC or 5 HP (28 FLA) at 240V AC. The switch should be wired according to the provided diagram using copper wire. The programming instructions allow for setting the on and off times as well as the time-of-day, and the switch can also be operated manually.
The Intermatic T101 is a 24-hour dial time switch designed for single pole single throw (SPST) applications. It supports resistive, inductive, tungsten, or 1000 VA pilot duty loads at 120/208/240 volts AC. The device allows for manual operation via a lever and automatic time-of-day scheduling using adjustable trippers.
| Rating | 40 AMP. RESISTIVE, INDUCTIVE, TUNGSTEN OR 1000 VA PILOT DUTY |
|---|---|
| Voltage | 120/208/240 VOLT AC |
| Motor Load (120V) | 2 HP (24 FLA) |
| Motor Load (240V) | 5 HP (28 FLA) |
| Clock Motor Voltage | 110-125 VOLTS - 60 HZ |
Hold the trippers against the edge of the CLOCK-DIAL pointing to the desired AM or PM times and tighten the tripper screws firmly.
Pull the CLOCK-DIAL outward, turn it to align the current time with the pointer, and ensure the pointer is not moved.
Move the MANUAL LEVER below the CLOCK-DIAL left or right as indicated by the arrows.
