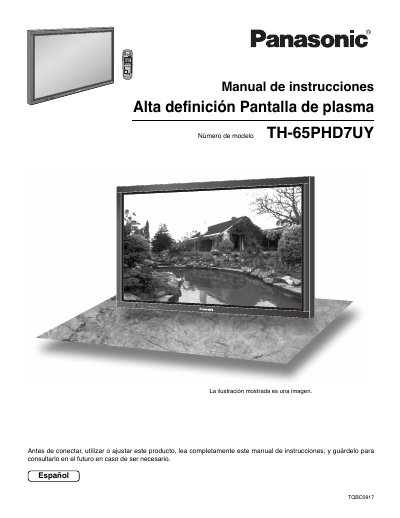

Panasonic TH-65PHD7UY High Definition Plasma Display Operating Instructions

This manual describes how to connect, use, and adjust this product. Please read this manual carefully before connecting, using, or adjusting this product, and keep it for future reference

Brand: Panasonic
Category: Television
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 2 MB
Published: 03 August, 2012
Updated: 30 September, 2023
Model: TH-65PHD7UY
MD5 checksum: F8F13F73F798B6FEA920480494E9DC85
PDF: Panasonic TH-65PHD7UY High Definition Plasma Display Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic TH-65PHD7UY High Definition Plasma Display. It includes important safety warnings regarding electric shock and fire hazards, as well as setup guidelines for power supply and ventilation.

The document details how to connect various input signals including PC, Serial, AV, Component, and RGB. It also covers basic controls, on-screen menu displays, picture and sound adjustments, timer settings, and troubleshooting steps.

What's inside

Important Safety Instructions
FCC STATEMENT
Connections
Basic Controls
On-Screen Menu Displays
PICTURE Adjustments
SOUND Adjustment
SET UP TIMER
SCREENSAVER
Specifications

Specifications

Power Supply	120 V AC, 50/60 Hz

Frequently asked questions

What should I do if the plug does not fit into the outlet?

Consult an electrician for replacement of the obsolete outlet.

Can I leave a still picture displayed for an extended period?

No, this can cause permanent after-image to remain on the Plasma Display.
