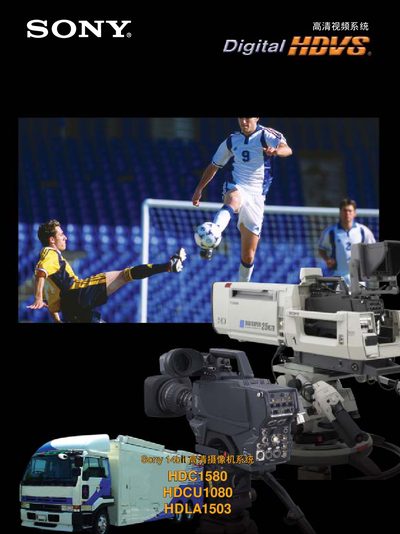

14-bit high-definition video system with high sensitivity, low noise, high dynamic range, and high resolution, suitable for outdoor program production
The Sony HDC1580 is a 14‑bit, 50i high‑definition camera system designed for live sports and OB‑van productions. It features a Power HAD EX HD CCD sensor, high sensitivity (F11), 55 % modulation depth, and a 14‑bit A/D converter for accurate image reproduction across a wide dynamic range.
The system supports a 1.5 Gb/s fiber‑optic transmission platform with up to 3000 m distance, S‑BUS network matrix output, and optional HDLA1503 lens adapter for rapid lens changes. Additional functions include electronic zoom (E‑倍率), back‑light keys, and a finder focus‑detail overlay to aid operators in challenging lighting conditions. This manual is written in Chinese.
| Sensitivity | F11 |
|---|---|
| Modulation Depth | 55 % |
| Signal‑to‑Noise Ratio | 55 dB |
| A/D Converter Resolution | 14 bit |
| Vertical Trailing | -135 dB |
| Dimensions (W×H×D) | 424 mm × 133 mm × 410 mm |
| Weight | 14.8 kg |
The camera has a sensitivity of F11.
It uses a 14‑bit A/D converter.
