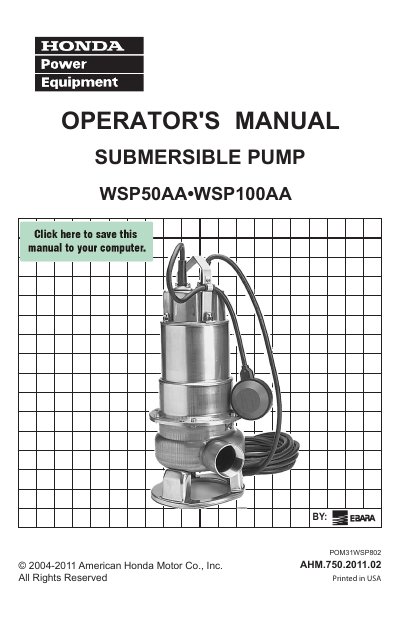

Honda WSP50AA/WSP100AA Submersible Pump Operator's Manual

This manual provides instructions for using and maintaining Honda submersible pumps WSP50AA and WSP100AA. It covers the pump's introduction, installation, operation, maintenance, and troubleshooting methods

Brand: Honda
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 2 MB
Published: 03 August, 2012
Updated: 30 September, 2023
MD5 checksum: 352B02DB554687D39C149FA6E8D2F980
PDF: Honda WSP50AA/WSP100AA Submersible Pump Operator's Manual PDF

About this manual

The document serves as an operator's manual for the Honda WSP50AA and WSP100AA series of stainless steel submersible solids pumps. It outlines safety warnings, general descriptions, technical data regarding pump and motor specifications, and recommended versus non-recommended usage conditions.

Detailed instructions are provided for handling, unpacking, installation (both fixed and temporary), assembly, electrical connection, start-up procedures, maintenance, troubleshooting, and warranty service information.

What's inside

General Safety Warnings
Recommended and Non-Recommended Use
Handling and Transport
Installation
Assembly and Disassembly
Preparation for Use
Use and Start-Up
Maintenance and Repairs
Troubleshooting
Warranty Service Information

Specifications

Power (Versions)	1/2 hp and 1 hp
Insulation class	F
Degree of protection	IP58

Frequently asked questions

What liquids can these pumps handle?

The pumps are designed for handling dirty or semidirty water, sewage collection drains, and rainwater.

Can the pump run without water?

No, WSP50 and WSP100 pumps must never be allowed to run without water.

What is the maximum size of suspended solids?

The pump can handle suspended bodies with a diameter no greater than 50 mm (2 inches).
