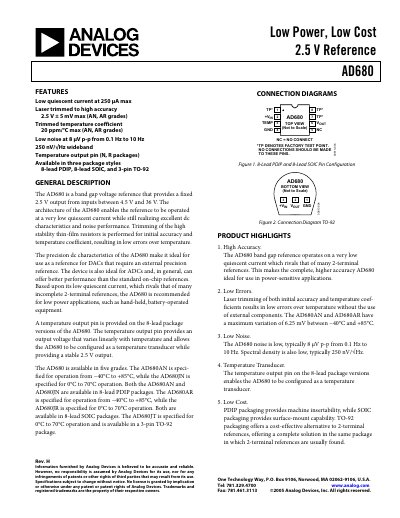

The AD680 is a low power, low cost 2.5 V reference. It features low quiescent current, high accuracy, low noise and adjustable temperature coefficient.
The AD680 is a bandgap voltage reference designed for low power applications, offering a fixed 2.5V output from input voltages between 4.5V and 36V. It features a low quiescent current of 250 μA max and high accuracy with a maximum initial error of ±5 mV for AN and AR grades. The device is available in three package styles: 8-lead PDIP, 8-lead SOIC, and 3-pin TO-92.
| Output Voltage | 2.5 V |
|---|---|
| Input Voltage Range | 4.5 V to 36 V |
| Quiescent Current | 250 μA max |
| Initial Accuracy | ±5 mV max |
| Temperature Coefficient | 20 ppm/°C max |
| Output Noise (0.1 Hz to 10 Hz) | 8 μV p-p |
| Spectral Density | 250 nV/√Hz |
| Operating Temperature Range | -40°C to +85°C |
The AD680 provides a fixed 2.5 V output.
The maximum quiescent current is 250 μA.
The device supports input voltages between 4.5 V and 36 V.
Yes, the +VIN pin must be bypassed to the GND pin with a 0.1 μF capacitor.
