This manual is a user manual for the Honda HRB217TDA model gasoline lawn mower, which mainly introduces the operation and maintenance methods of the lawn mower.

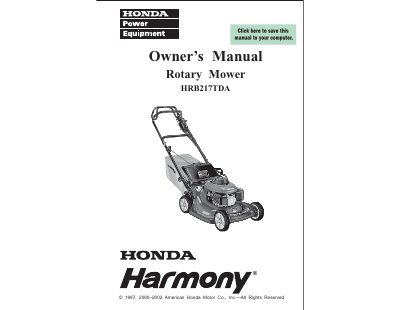

This document is the Owner's Manual for the Honda HRB217TDA rotary mower. It serves as a permanent part of the equipment, intended to assist owners in operating the mower safely and effectively. The manual covers essential safety information, including warnings about rotating blades, refueling precautions, and the importance of wearing protective clothing. It also addresses specific safety messages for parents regarding the operation of the mower by children.
| Fuel Capacity | 0.29 US gal (1.12 L) |
|---|---|
| Engine Oil Type | SAE 10W-30, API SH or SJ |
| Spark Plug Type | Regular: NGK BP6ES, DENSO W20EP-U |
| Spark Plug Type (Resistor) | NGK BPR6ES, DENSO W20EPR-U |
| Electrode Gap | 0.028 — 0.031 in (0.70 — 0.80 mm) |
| Carburetor Idle Speed | 1,700 + 150 rpm |
The recommended oil is SAE 10W-30, API SH or SJ.
The electrode gap should be between 0.028 and 0.031 inches (0.70 to 0.80 mm).
Inspect the mowing area to remove sticks, stones, and other loose objects.
