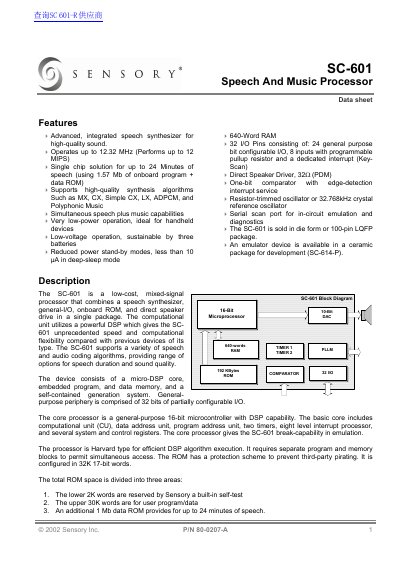

The SC-601 is a low-cost, mixed-signal processor that combines a speech synthesizer, general-I/O, onboard ROM, and direct speaker drive in a single package. The computational unit utilizes a powerful DSP which gives the SC-601 unprecedented speed and computational flexibility compared with previous devices of its type.
The SC-601 is a single-chip solution designed as a low-cost, mixed-signal processor that integrates a speech synthesizer, general-purpose I/O, onboard memory, and a direct speaker driver. It features a powerful DSP core capable of operating up to 12.32 MHz, supporting high-quality synthesis algorithms such as MX, CX, Simple CX, LX, ADPCM, and Polyphonic Music.
| Operating Frequency | 64 to 12,320 kHz |
|---|---|
| Supply Voltage Range | 3 V to 5.2 V |
| RAM Size | 640 words |
| ROM Capacity | 192 KBytes |
| Package Type | 100-pin LQFP or Die |
It supports high-quality synthesis algorithms such as MX, CX, Simple CX, LX, ADPCM, and Polyphonic Music.
Yes, it includes a built-in pulse-density-modulated DAC with direct speaker-drive capability.
