BARCO 808S Graphics Projector Owner's Manual

This is a manual for the BARCO GRAPHICS 808s projector. It introduces the use, installation, maintenance, cleaning, repacking methods, etc.

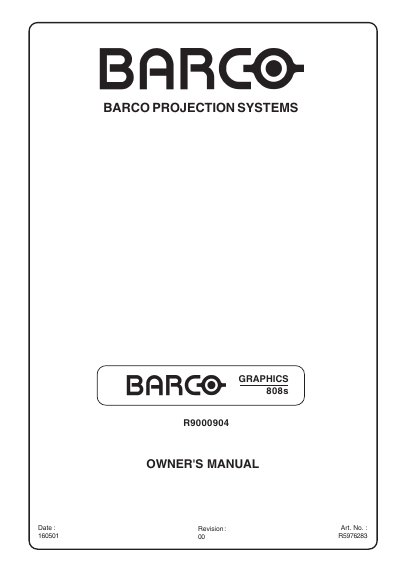

BARCO 808S Graphics Projector Owner's Manual - cover page
Brand
巴图形808S
Category
Projector
Document type
User Manual
Language
English
Pages
51
File format
PDF
File size
2.5 MB
Published
02 August, 2012
Updated
30 September, 2023
MD5 checksum
4AC414A577AB9C21227DD9B38225B125
PDF
BARCO 808S Graphics Projector Owner's Manual PDF

About this manual

This document is the Owner's Manual for the BARCO 808S Graphics Projector. It covers safety instructions, installation procedures, and connections for various signal inputs including composite video, S-Video, RGB analog, and component video. The manual details how to use the Remote Control Unit (RCU) for controlling the projector and adjusting picture settings.

What's inside

  • Safety Instructions
  • Location and Functions of Control
  • Connections
  • Controlling
  • Start Up of the Adjustment Mode
  • Random Access Adjustment Mode
  • Service Mode
  • Messages, Warnings and Failure Codes
  • Options

Specifications

Power Voltage Range100V (-10%) to 240V (+6%)
Document Part NumberR9000904

Frequently asked questions

What is the operating AC power voltage range for the projector?

The projector operates from an AC power source with a voltage autoranging between 100V (-10%) and 240V (+6%).

Is the projector equipped with a grounding plug?

Yes, the product is equipped with a 3-wire grounding plug having a third (grounding) pin.
