BARCO CINE 5 Projector Owner's Manual

The document is a PDF file that describes the features and characteristics of a certain product.

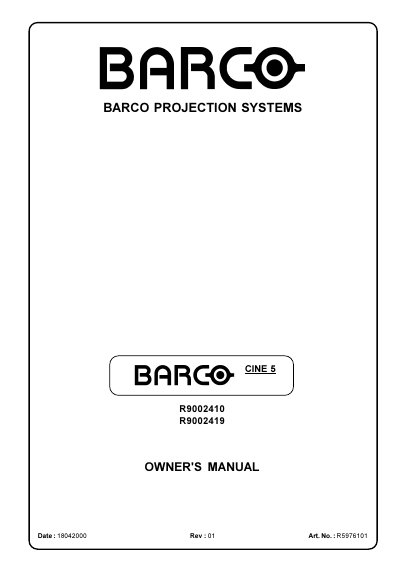

BARCO CINE 5 Projector Owner's Manual - cover page
Brand
巴日比5Projector用户手册
Category
Projector
Document type
User Manual
Language
English
Pages
51
File format
PDF
File size
3.3 MB
Published
02 August, 2012
Updated
28 September, 2023
MD5 checksum
57C6824D4C9028316599519168D180AB
PDF
BARCO CINE 5 Projector Owner's Manual PDF

About this manual

This document is the Owner's Manual for the BARCO CINE 5 projection system. It covers safety instructions, installation requirements, and detailed descriptions of the projector's control panels and connection options. The guide explains how to connect various video sources, including composite, S-Video, RGB, and component video, as well as optional RF signals and switchers.

The manual details the operation of the Remote Control Unit (RCU) and the projector's adjustment modes, including Picture Tuning, Color Balance, Geometry adjustments, and Convergence. It also includes information on the Service Mode for technicians and lists available options such as the IR Receiver and Ceiling Mount kit.

What's inside

  • Safety Instructions
  • Locations and Functions of Control
  • Connections
  • Controlling
  • Adjustment Mode
  • Service Mode
  • Options

Specifications

Operating AC power voltage230V AC or 120V AC
FCC ClassClass A digital device

Frequently asked questions

What is the part number of the BARCO CINE 5?

The part number is R9002410.

Where are the part and serial numbers located?

They are located at the back side of the projector.
