MBR1530CT-MBR1560CT Schottky Barrier Rectifiers from Huayuan Electronics have low power loss, high efficiency, high surge capability, high current capability and low forward voltage drop. They are suitable for use in low voltage, high frequency inverters, freewheeling, and polarity protection applications

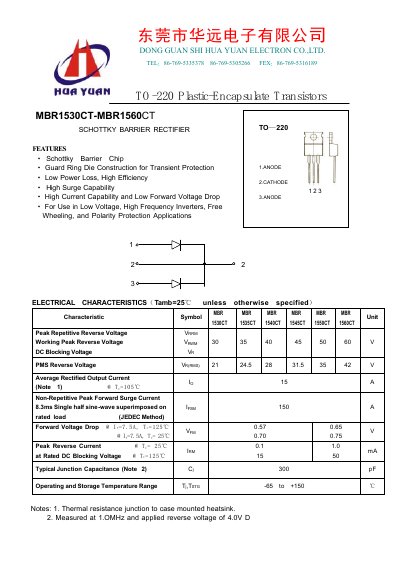

This document provides detailed specifications for the MBR1530CT through MBR1560CT Schottky Barrier Rectifier series. Key features include a Schottky barrier chip design with guard ring die construction for transient protection, low power loss, high efficiency, and high surge capability.
| Peak Repetitive Reverse Voltage (VRRM) | 30 to 60 V |
|---|---|
| Average Rectified Output Current (IO) | 15 A |
| Forward Voltage Drop (VFM) | 0.57 to 0.75 V |
| Operating and Storage Temperature Range | -65 to +150 ¡æ |
The average rectified output current is 15 A when the case temperature is 105°C.
The non-repetitive peak forward surge current is 150 A for a single half sine-wave lasting 8.3ms.
The device operates and stores within a temperature range of -65 to +150°C.
