RC4741 is a data line receiver and transmitter

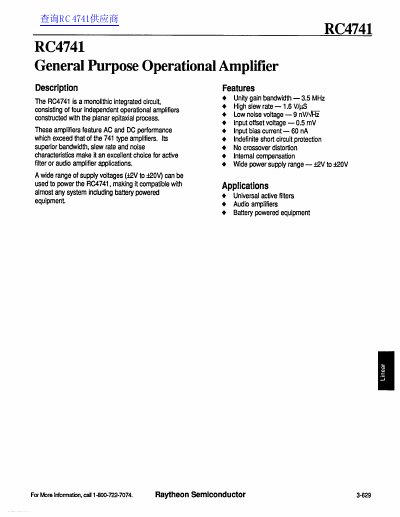

The RC4741 is a monolithic integrated circuit consisting of four independent operational amplifiers constructed with the planar epitaxial process. It features low noise voltage, indefinite short circuit protection, and internal compensation, making it suitable for active filters and audio amplifier applications. The device offers a wide power supply range from 42V to +20V and is compatible with almost any system, including battery-powered equipment.
| Input Offset Voltage | 0.5 mV (Typ) |
|---|---|
| Input Bias Current | 60 nA (Typ) |
| Unity Gain Bandwidth | 3.5 MHz (Typ) |
| Slew Rate | 1.6 V/us (Typ) |
| Supply Voltage Range | 42V to +20V |
| Operating Temperature (RM4741) | 0°C to +70°C |
| Operating Temperature (RM4741D) | -55°C to +125°C |
The typical input offset voltage is 0.5 mV.
The typical unity gain bandwidth is 3.5 MHz.
The typical slew rate is 1.6 V/us.
