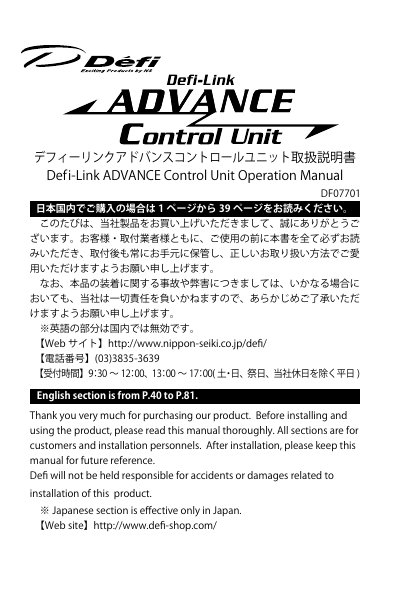

This manual is for Defi-Link ADVANCE Control Unit, and introduces the product features, functions, specifications, installation methods, usage methods, maintenance and other contents.
The Defi ADVANCE Control Unit is an additional product designed to provide automobile users with information about engine conditions and other important factors. It is required for the operation of ADVANCE gauges and displays and must be used in conjunction with them. This manual covers safety warnings, product features, specifications, installation methods, and troubleshooting for the unit, model number DF07701.
The document emphasizes strict safety precautions during installation, such as ensuring the vehicle is stationary, disconnecting the battery, and avoiding interference with safety equipment like airbags. It specifies that the unit is designed for 12V vehicles only and provides detailed wiring instructions, including the requirement for a 30A or less fuse on the ignition-switched line.
| Voltage System | 12V |
|---|---|
| Fuse Rating | 30A or less |
No, it is required for ADVANCE gauges and displays and does not operate alone.
No, the product is designed for use on 12V vehicles only.
A fuse of 30A or less must be used for the ignition-switched +12V(IGN) line.
