MD-4221 LCD MONITOR user manual

This document is the user manual of MD-4221 42” HD MEDICAL LCD MONITOR. It introduces the features and characteristics of the product, including safety instructions, installation, and operation instructions.

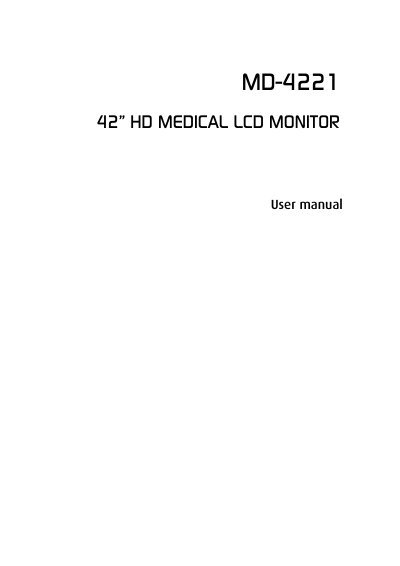

MD-4221 LCD MONITOR user manual - cover page
Brand
MD-4221
Category
Monitor
Document type
User Manual
Language
English
Pages
48
File format
PDF
File size
876 KB
Published
13 July, 2012
Updated
30 September, 2023
MD5 checksum
964874ADA0D453993A4D6C6BD839188C
PDF
MD-4221 LCD MONITOR user manual PDF

About this manual

The document is a comprehensive user guide for the Barco MD-4ee, a 42-inch HD Medical LCD Monitor. It provides detailed information on unpacking, installation, and safety precautions specific to medical environments, including warnings about patient vicinity usage and electrical shock hazards.

The manual details the operation of the On-Screen Display (OSD) menu for configuring settings such as brightness, contrast, and geometry. It also includes technical specifications, supported PC modes, signal connector pin assignments, and warranty terms.

What's inside

  • Important Notice
  • Safety Instructions
  • Environmental Conditions
  • Unpacking and Handling Tips
  • On-Screen Display Menu
  • OSD Functions Description
  • Standard Signal Table
  • Specifications

Specifications

Screen Size42 inches
Power Supply Input100-230V~ 50-60Hz, 3A MAX
Operating Temperature Range-20°C to 60°C

Frequently asked questions

Can this monitor be used with life support equipment?

No, the device may not be used in connection with life support equipment.

What is the maximum current for this monitor's power supply?

The maximum current rating is 3A MAX at voltages between 100-230V.

Download PDF (876 KB)
