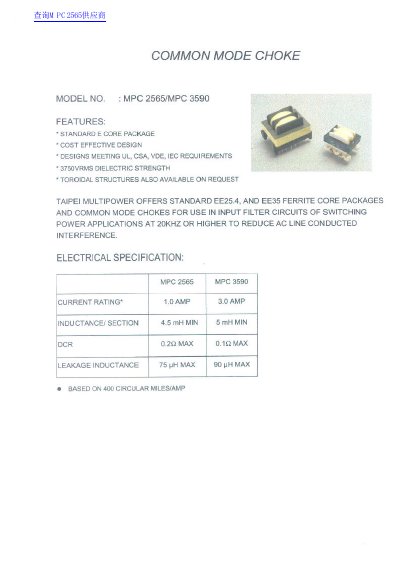

This document is a datasheet for the Taipei Multipower MPC 2565 and MPC 3590 Common Mode Chokes. These components are designed in standard EE25.4 and EE35 ferrite core packages to reduce AC line conducted interference in switching power applications operating at 20kHz or higher.
The datasheet provides key features including compliance with UL, CSA, VDE, and IEC requirements, a dielectric strength of 3750VRMS, and the option for toroidal structures. It lists specific electrical specifications such as current ratings, inductance per section, DC resistance (DCR), and leakage inductance for both models.
| Dielectric Strength | 3750VRMS |
|---|---|
| Current Rating (MPC 2565) | 1.0 AMP |
| Inductance/Section (MPC 2565) | 4.5 mH MIN |
| Inductance/Section (MPC 3590) | 5 mH MIN |
| DCR (MPC 2565) | 0.2 MAX |
| DCR (MPC 3590) | 0.12 MAX |
The devices have a stated dielectric strength of 3750 VRMS.
The MPC 2565 model is rated for 1.0 AMP, while the MPC 3590 model is rated for 3.0 AMP.
The MPC 2565 has a minimum of 4.5 mH, and the MPC 3590 has a minimum of 5 mH.
