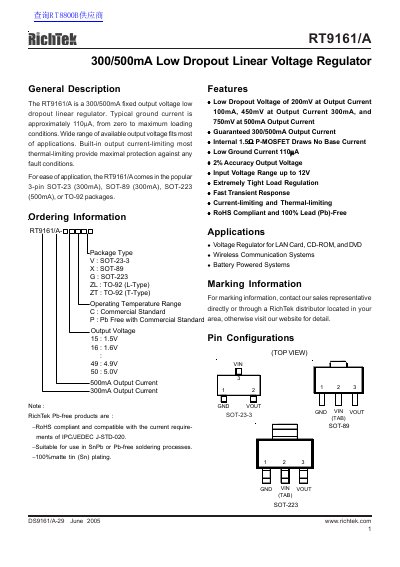

RT9161/A is a 300/500mA fixed output voltage low dropout linear regulator. Its features include low dropout voltage, built-in output current limiting and thermal limiting, wide input voltage range, and tight load regulation.
The RT9161/A is a 300/500mA fixed output voltage low dropout linear regulator designed for applications such as LAN cards, CD-ROMs, DVD drives, wireless communication systems, and battery-powered systems. It features a low dropout voltage of up to 750mV at 500mA output current and a typical ground current of approximately 110 μA. This manual is written in Chinese.
| Output Current | 300/500mA |
|---|---|
| Typical Ground Current | 110 μA |
| Output Voltage Accuracy | 2% |
| Input Voltage Range | up to 12V |
| Operating Junction Temperature | -40°C to 125 °C |
The device is available with fixed output voltages of 1.5V, 1.6V, 4.9V, and 5.0V.
The regulator comes in SOT-23 (300mA), SOT-89 (300mA), SOT-223 (500mA), or TO-92 packages.
Yes, it is RoHS Compliant and 100% Lead (Pb)-Free.
