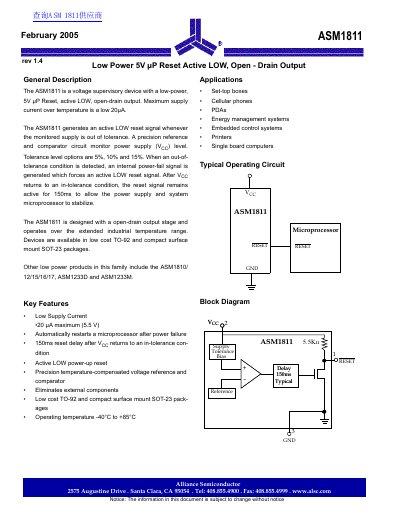

The ASM1811 is a low-power, 5V µP Reset, active LOW, open-drain output voltage supervisory device.
The ASM1811 is a voltage supervisory device designed to generate an active LOW reset signal when the monitored supply voltage is out of tolerance. It features a precision reference and comparator circuit to monitor the Vcc level, ensuring system stability during power-up and power-down transitions.
| Supply Voltage | 1.2V to 5.5V |
|---|---|
| Operating Current | 20 uA maximum |
| Operating Temperature Range | -40°C to +85°C |
| Reset Delay Time | 150ms |
| Output Stage | Open-Drain |
The maximum supply current over temperature is a low 20 uA.
Tolerance level options are 5%, 10% and 15%.
