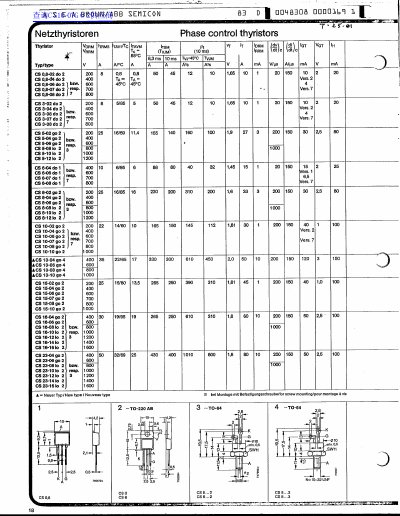

This document is a technical datasheet for the Netzthyristoren CS Series of phase control thyristors. It provides detailed electrical specifications including voltage ratings (VRRM), current ratings (IT(RMS)), and thermal characteristics for various models ranging from CS 08-02 to CS 23-16.
The second page of the document details the mechanical dimensions and mounting requirements for the thyristors. It includes specific data for different mounting configurations, such as screw mounting and print board mounting, specifying dimensions in millimeters and thermal resistance values. This manual is written in German.
| Product Type | Phase control thyristors |
|---|---|
| Series Name | CS Series |
| Mounting Type | Print board |
| Package Type | TO-220 AB |
