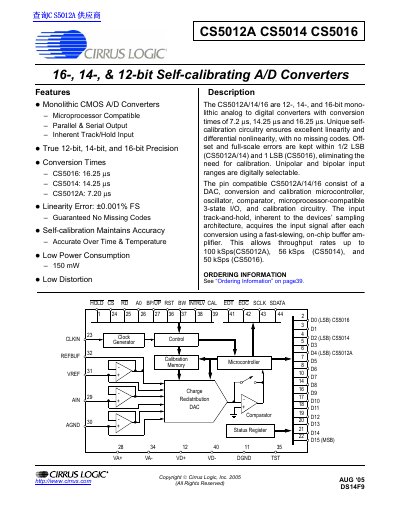

The CS5012A/14/16 are 12-, 14-, and 16-bit monolithic analog to digital converters with conversion times of 7.2 µs, 14.25 µs, and 16.25 µs. Unique self-calibration circuitry ensures excellent linearity and differential nonlinearity, with no missing codes. Offset and full-scale errors are kept within 1/2 LSB (CS5012A/14) and 1 LSB (CS5016), eliminating the need for calibration. Unipolar and bipolar input ranges are digitally selectable. The pin compatible CS5012A/14/16 consist of a DAC, conversion and calibration microcontroller, oscillator, comparator, microprocessor-compatible 3-state I/O, and calibration circuitry. The input track-and-hold, inherent to the devices’ sampling architecture, acquires the input signal after each conversion using a fast-slewing, on-chip buffer amplifier. This allows throughput rates up to 100 kSps(CS5012A), 56 kSps (CS5014), and 50 kSps (CS5016).
The document describes the CS5012A, CS5014, and CS5016 as monolithic CMOS analog-to-digital converters featuring inherent track/hold inputs and true precision resolutions of 12, 14, and 16 bits, respectively. These devices utilize unique self-calibration circuitry to ensure excellent linearity and differential nonlinearity without missing codes, maintaining accuracy over time and temperature. The converters support both parallel and serial outputs and are microprocessor compatible.
| Resolution | 12-bit, 14-bit, and 16-bit |
|---|---|
| Linearity Error | +0.001% FS |
| Conversion Time (CS5016) | 16.25 us |
| Conversion Time (CS5012A) | 7.20 us |
| Temperature Range | -40 to +85 °C |
| Throughput (CS5012A) | 100 kSps |
| Throughput (CS5014) | 55.6 kSps |
| Throughput (CS5016) | 50 kSps |
No, the self-calibration circuitry eliminates the need for calibration.
Yes, unipolar and bipolar input ranges are digitally selectable.
The guaranteed linearity error is +0.001% FS.
