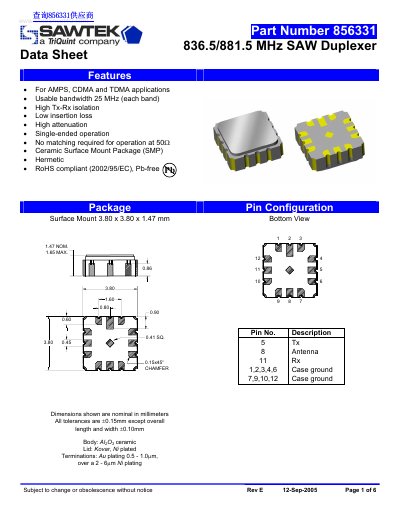

Sawtek Part Number 856331 836.5/881.5 MHz SAW Duplexer Data Sheet

856331 836.5/881.5 MHz SAW Duplexer is a high performance duplexer for AMPS, CDMA and TDMA applications. It has 25 MHz (each band) usable bandwidth, high Tx-Rx isolation, low insertion loss and high attenuation.

Brand: SAWTEK
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 580 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: CDC1B16A7AD032E5DB33FA6CB1E15269
PDF: Sawtek Part Number 856331 836.5/881.5 MHz SAW Duplexer Data Sheet PDF

About this manual

This document is a data sheet for the Sawtek Part Number 856331 Surface Acoustic Wave (SAW) Duplexer. It is designed for use in AMPS, CDMA, and TDMA applications, featuring a usable bandwidth of 25 MHz per band. The device operates as a single-ended unit with no impedance matching required at the terminals.

What's inside

Features
Pin Configuration
Electrical Specifications
Typical Performance
Test Circuits
Packaging

Specifications

Operating Temperature Range	-30 to +85 C
Center Frequency Tx-Ant	836.5 MHz
Package Dimensions	3.80 x 3.80 x 1.47 mm
Packaging Quantity	4000 units/reel

Frequently asked questions

Is impedance matching required for operation?

No, the device is designed for single-ended operation with no impedance matching required.

What applications is this duplexer suitable for?

It is suitable for AMPS, CDMA, and TDMA applications.
