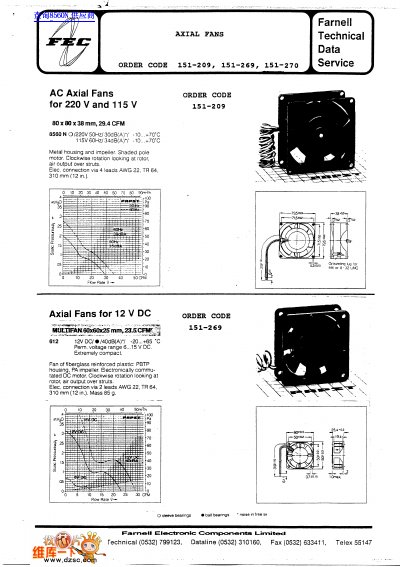

This document provides technical data for Farnell AC Axial Fans, specifically the 151-270 series. It details specifications for 220 V and 115 V AC models (80x80x38mm) featuring metal housings, shaded pole motors, and clockwise rotation. The document also covers 12 V DC models (60x60x25mm) with fiberglass reinforced plastic housings and electronically commutated DC motors.
| AC Model Dimensions | 80x80x38mm |
|---|---|
| AC Model Airflow | 29.4 CFM |
| AC Model Voltage | 220 V and 115 V |
| AC Model Motor Type | Shaded pole motor |
| DC Model Dimensions | 60x60x25 mm |
| DC Model Airflow | 23.5 CFM |
| DC Model Voltage | 12 V DC |
| DC Model Housing Material | Fiberglass reinforced plastic |
| AC Connection Leads | 4 leads AWG 22 |
| DC Connection Leads | 2 leads AWG 22 |
The order code is 151-209.
The permissible voltage range is 5 to 15 V DC.
The rotation is clockwise when looking at the rotor.
