ON Semiconductor NCV7701 2.0 Amp H-Bridge Driver Datasheet

NCV7701 is an automotive grade H-bridge driver produced by ON Semiconductor, featuring a low quiescent current mode, supporting forward, reverse, brake high, and brake low modes, with an output current capability of 1.0 A (DC) and a working voltage range of 7.0 V to 26 V. It also has overvoltage protection, thermal protection, undervoltage disable function, short circuit protection, and cross conduction protection.

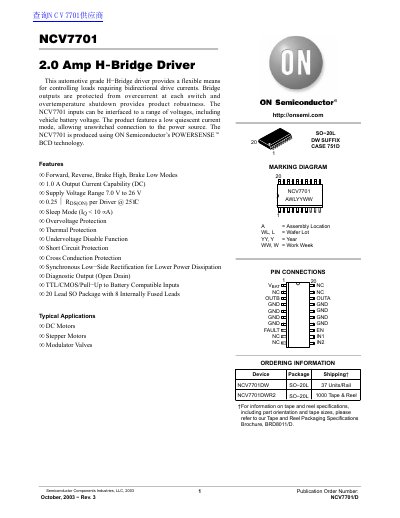

ON Semiconductor NCV7701 2.0 Amp H-Bridge Driver Datasheet - cover page
Brand
NCV7701
Document type
Datasheet
Language
English
Pages
6
File format
PDF
File size
55 KB
Published
12 July, 2012
Updated
30 September, 2023
MD5 checksum
4862A230714BBB90560D06AD814906B6
PDF
ON Semiconductor NCV7701 2.0 Amp H-Bridge Driver Datasheet PDF

About this manual

The NCV7701 is an automotive grade H-Bridge driver designed to control loads requiring bidirectional drive currents. It features flexible mode selection including Forward, Reverse, Brake High, and Brake Low, along with robust protection mechanisms such as overcurrent shutdown at each switch and overtemperature shutdown.

What's inside

  • Features
  • Typical Applications
  • Maximum Ratings
  • Electrical Characteristics
  • H-Bridge Mode Control
  • Fault Diagnostics
  • Package Pin Description
  • Operating Description

Specifications

Output Current Capability (DC)1.0 A
Supply Voltage Range7.0 V to 26 V
Quiescent Current (Low)< 10 µA
Thermal Shutdown Temperature160°C to 210°C
Package TypeSO-20L

Frequently asked questions

What are the operating modes of the NCV7701?

The device supports Forward, Reverse, Brake High, and Brake Low modes.

Does the NCV7701 include overcurrent protection?

Yes, bridge outputs are protected from overcurrent at each switch.

What is the quiescent current in sleep mode?

The quiescent current is less than 10 µA when in Sleep Mode.
