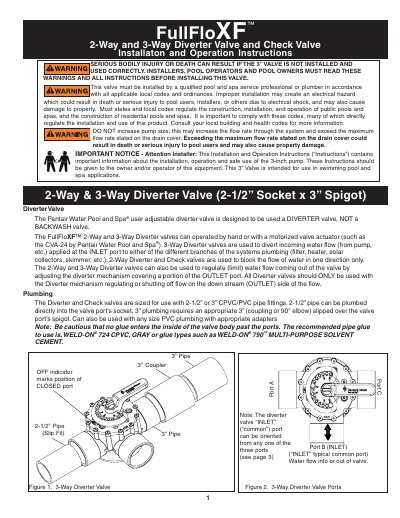

This document introduces the installation and operation instructions for Pentair Water Pool and Spa® 2-Way and 3-Way Diverter Valve and Check Valve.
This document provides installation and operation instructions for the Pentair FullFloXF™ 2-Way and 3-Way Diverter Valves and Check Valves. These components are designed for use with 2-1/2" or 3" CPVC/PVC pipe fittings in swimming pool and spa systems to divert water flow between filters, heaters, solar collectors, and skimmers.
The guide details the assembly of the valve top covers, including torque specifications (36 lb*in) for cover screws. It also explains how to set handle stop-pins to regulate or shut off downstream water flow and provides parts lists for diverter shaft assemblies and check valve flapper replacement kits.
| Pipe Size Compatibility | 2-1/2" or 3" |
|---|---|
| Cover Screw Torque | 36 lb*in (4.1 N*m) |
| Recommended Pipe Glue | WELD-ON® 724 CPVC or WELD-ON® 790™ MULTI-PURPOSE SOLVENT CEMENT |
| O-Ring Material | BUNA-N 70 SHORE A |
The valve must be installed by a qualified pool and spa service professional or plumber in accordance with all applicable local codes.
Yes, the valves can be operated by hand or with a motorized valve actuator such as the CVA-24.
Stop-pins determine the position of the internal seal to completely stop flow, regulate limited flow, or allow maximum flow.
