Pentair IntelliChlor IC20/IC40 Electrical Power Center Installation Guide

This manual provides installation instructions for the IntelliChlor Power Center. The IntelliChlor Power Center is for use with the IntelliChlor IC20 and IC40 electronic pool and spa chlorinators.

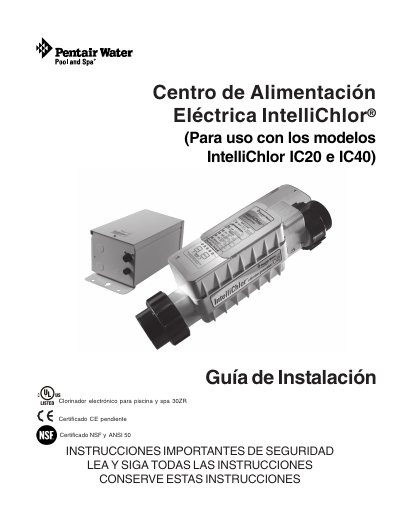

Pentair IntelliChlor IC20/IC40 Electrical Power Center Installation Guide - cover page
Brand
Pentai
Category
Other
Document type
Installation Guide
Language
Spanish
Pages
16
File format
PDF
File size
1.9 MB
Published
12 July, 2012
Updated
30 September, 2023
MD5 checksum
525DE51CA00339CCB19E8587FB80C312
PDF
Pentair IntelliChlor IC20/IC40 Electrical Power Center Installation Guide PDF

About this manual

This document is the installation guide for the Pentair IntelliChlor Electrical Power Center (Model PC 100), designed for use with IntelliChlor IC20 and IC40 electrolytic cells. The power center converts AC current to low-voltage DC current required by the cell to generate chlorine for pools and spas. It houses the transformer, fuse, and cell connector, and includes a 35V DC output for the cell controller. This manual is written in Spanish.

What's inside

  • Precauciones de Seguridad
  • Visión General del Centro de Alimentación Eléctrica
  • Modelos IntelliChlor
  • Contenido del Kit
  • Herramientas Requeridas
  • Instalando el Centro de Alimentación Eléctrica
  • Localización de Averías
  • Especificaciones Eléctricas y Cableado
  • Cableado Básico del Sistema de 220 VCA
  • Cableado Básico del Sistema de 110 VCA

Specifications

Output Voltage35 voltios de corriente continua (VCC)
Fuse Rating8 AMP
IC40 Chlorine Production635 gm por 24 horas

Frequently asked questions

Is a timer included in the kit?

No, a timer is not included as part of the Electrical Power Center kit.

What is the minimum distance required between the IntelliChlor unit and the heater outlet?

The unit must be installed at a minimum distance of two feet from the heater outlet.
