Pentair SM/SMBW 2000 or 4000 Series Filter Vent Tube Installation Instructions

About this manual

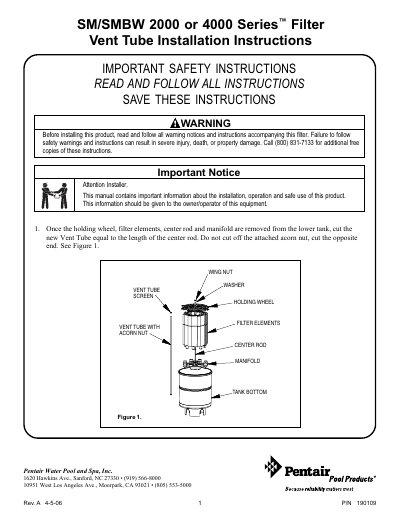

This document provides step-by-step instructions for installing the vent tube on Pentair SM/SMBW 2000 or 4000 Series filter systems. It includes safety warnings and specific steps for cutting the tube, inserting it through the manifold, and securing the assembly with the center rod and holding wheel.

What's inside

• IMPORTANT SAFETY INSTRUCTIONS
• Cutting the Vent Tube
• Inserting the Vent Tube
• Installing the Manifold
• Installing Filter Elements
• Securing the Holding Wheel
• Final Assembly

Frequently asked questions

How do you prepare the new Vent Tube for installation?

Cut the tube equal to the length of the center rod, but leave the attached acorn nut intact.

How do you secure the vent tube inside the holding wheel?

Press the tube into the slot on the wheel and push it past the tabs.
