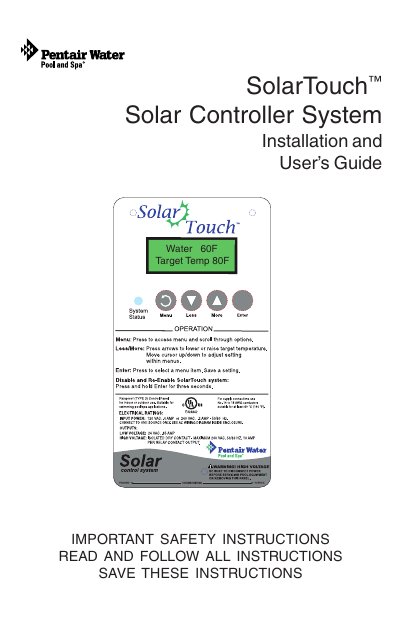

SolarTouch Solar Controller Installation and User’s Guide. Provides important safety instructions, installation and usage information for the SolarTouch solar controller.
The Pentair SolarTouch solar controller system consists of a four-button controller, a valve actuator, a diverter valve, and two temperature sensors. It maximizes available solar heat by monitoring water and solar collector temperatures to automatically divert pool circulation through the collectors when heating is required.
This guide provides instructions for installing the controller enclosure, connecting power and wiring, mounting the unit, and integrating with IntelliFlo and IntelliPro pumps. It also details how to use the control panel menus for temperature adjustment, nocturnal cooling, freeze protection, and system diagnostics.
| Temperature Range | 40°F to 104°F |
|---|
Press and hold the Enter button to disable Heating, Cooling, and Freeze Protect.
You must connect a minimum 8 AWG solid copper conductor between the unit and nearby metal equipment or piping.
The system allows you to set target temperatures anywhere from 40°F to 104°F.
Freeze protection stops when the solar temperature sensor and water sensor reach 42°F.
