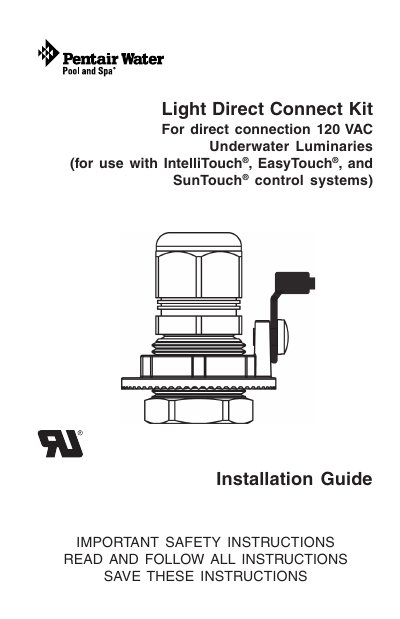

This manual contains important information about the installation, operation and safe use of the Light Direct Connect Fitting
The Pentair Light Direct Connect Kit is designed for direct connection of 120 VAC underwater luminaries and is compatible with IntelliTouch, EasyTouch, and SunTouch control systems. The fitting seals the light power cord at the end of the light conduit running to the bottom of the load center and is installed into a 3/4" knockout in the load center.
This guide provides step-by-step instructions for installing the fitting using either non-metallic PVC conduit or red brass conduit. It covers procedures for IntelliTouch and EasyTouch load centers as well as SunTouch power centers, including requirements for circuit breakers, grounding, and sealing the cord grip.
| Voltage | 120 VAC |
|---|---|
| Circuit Breaker Rating | 25 AMP (maximum) |
| Conduit Size | 3/4" or 1/2" |
| Power Cord Gauge | 16 AWG |
| Ground Wire Gauge | No. 8 AWG |
| Cord Grip Torque | 80 in-lbs (minimum) |
| Bonding Terminal Torque | 25 in-lbs (minimum) |
It is designed for use with IntelliTouch, EasyTouch, and SunTouch control systems.
It must be installed by a qualified service professional or under the direct supervision of a qualified electrician.
