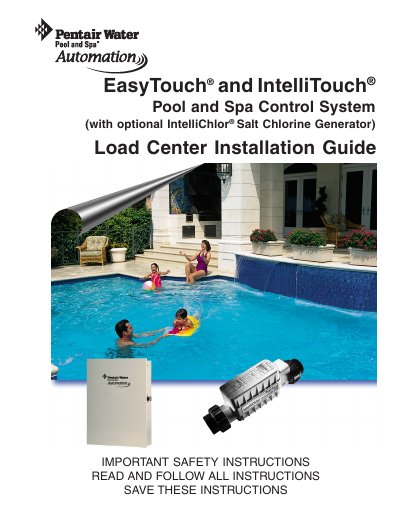

Pentair EasyTouch IntelliTouch Pool Spa Control System Installation Guide

About this manual

This document is an installation guide for the Pentair Water Pool and Spa EasyTouch and IntelliTouch Control System Load Centers. It covers safety warnings, general installation information, and specific procedures for mounting enclosures and connecting AC power.

The guide details electrical wiring high voltage connections, installing conduit and wire to the enclosure, and accessing circuit boards. It also includes instructions for connecting relays, valve actuators, temperature sensors (water, ambient air, solar), gas heaters, heat pumps, IntelliFlo pumps, and optional IntelliChlor salt chlorine generators.

What's inside

• IMPORTANT WARNING AND SAFETY INSTRUCTIONS
• General Installation Information
• Load Center and Power Center Overview
• Mounting the Load Center and Power Center
• Connecting AC Power to the Enclosure
• Electrical Wiring High Voltage Connections
• Installing Conduit and Wire to the Enclosure
• Accessing the Circuit Board and Electronics
• Connecting System Relays
• Installing Valve Actuators

Specifications

Frequently asked questions

Who must install this product?

This product must be installed by a licensed or certified electrician or a qualified pool professional in accordance with the National Electrical Code (NEC) and local codes.

What is the risk of improper installation?

Improper installation can create an electrical shock hazard that can result in death or serious injury to pool users, installers, or others.
