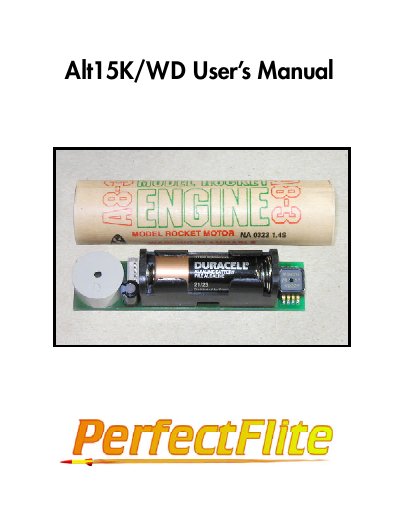

Alt15K/WD User's Manual is a user manual for Alt15K/WD altimeter, introduces the functions and usage of the altimeter.
This manual describes the PerfectFlite Alt15K/WD, a subminiature altimeter designed for rocketry that features audible peak reporting and full flight logging capabilities. The device determines altitude by sampling air pressure and comparing it to ground level pressure, reporting the peak altitude (apogee) via a series of beeps after the flight.
| Maximum Altitude | 15,000 feet MSL |
|---|---|
| Dimensions | 2.45"L x 0.55" W x 0.55"T |
| Weight | 14 grams (with battery) |
| Operating Voltage | 12V nominal (6V - 16V) |
| Operating Current | 1.3 ma typical |
| Serial Data Rate | 9,600 bps |
| Launch Detection Threshold | 80 feet AGL |
| Altitude Accuracy | +/-(0.3% reading + 4') |
| Operating Temperature | 0C to 70C |
The altimeter reports the peak altitude continuously at ten second intervals via a sequence of beeps.
The altimeter is powered by a standard 12 volt "N" size remote battery, such as Duracell MN21/23 or GP A23.
The battery life is approximately 24 hours.
All assembled PerfectFlite products include a full three year/36 month warranty against defects in parts and workmanship.
