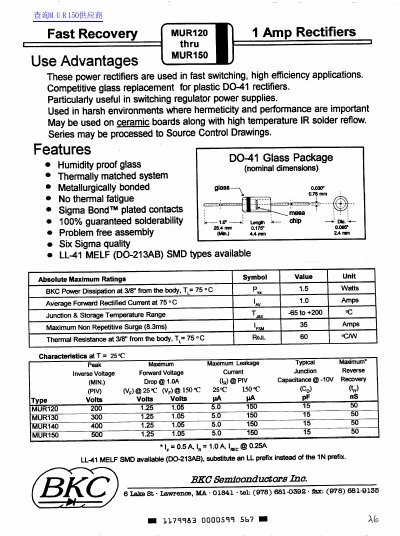

This document provides technical specifications for the BKC MUR120 through MUR150 series of 1 Amp Fast Recovery Rectifiers. These devices are designed for fast switching and high efficiency applications, serving as a competitive glass replacement for plastic DO-41 rectifiers. They are particularly useful in switching regulator power supplies and harsh environments where hermeticity and performance are critical. The series may be processed to Source Control Drawings and is available in LL-41 MELF (DO-213AB) SMD types.
| Power Dissipation | 15 Watts |
|---|---|
| Average Forward Rectified Current | 1.0 Amps |
| Junction & Storage Temperature Range | -65 to +200 °C |
| Maximum Non Repetitive Surge | 35 Amps |
| Thermal Resistance | 60 CAV |
These power rectifiers are used in fast switching, high efficiency applications, and are particularly useful in switching regulator power supplies.
The maximum power dissipation is 15 Watts when the device is 3/8" from the body at a temperature of 75 °C.
The junction and storage temperature range is from -65 to +200 °C.
