MMSD4148T1 is a switching diode from ON Semi, with high breakdown voltage and fast switching time. It has SOD−123 surface mount package, available in 8 mm tape and reel, and lead-free package is also available.

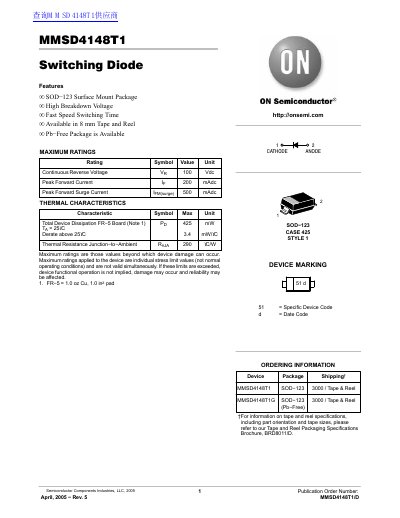

The document provides a comprehensive overview of the MMSD4148T1 switching diode, highlighting its SOD-123 surface mount package, high breakdown voltage of 100V, and fast switching time. It includes maximum ratings, thermal characteristics, and electrical parameters such as reverse recovery time and capacitance.
| Package Type | SOD-123 |
|---|
The diode is available in an SOD-123 Surface Mount Package.
The maximum continuous reverse voltage is 100 Vdc.
The maximum power dissipation is 225 milliwatts at an ambient temperature of 25°C.
The soldering temperature must not exceed 260°C for more than 10 seconds.
