MMSD4148 is a switching diode in the MMSD series. It features high breakdown voltage, fast switching time, surface mount package and is lead-free and RoHS-compliant.

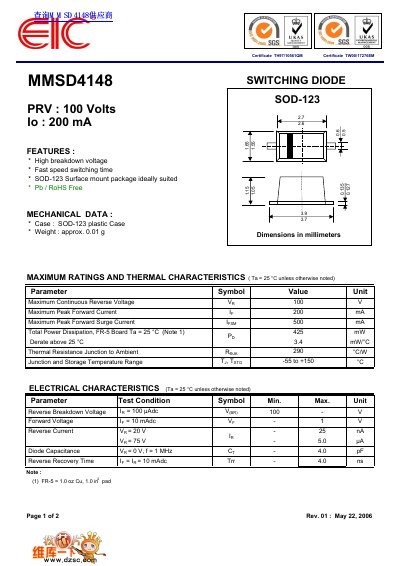

This document is a technical datasheet for the SGS MMSD4148 switching diode. It highlights key features such as high breakdown voltage, fast speed switching time, and compatibility with Pb/RoHS free standards. The device utilizes an SOD-123 surface mount plastic case.
| Package Type | SOD-123 plastic Case |
|---|---|
| Reverse Breakdown Voltage | 100 V |
| Maximum Peak Forward Current | 200 mA |
| Total Power Dissipation (Ta = 25 °C) | 425 mW |
| Thermal Resistance Junction to Ambient | 390 °C/W |
| Junction and Storage Temperature Range | -55 to +150 °C |
The maximum continuous reverse voltage is rated at 100 V.
The maximum peak forward current is 200 mA.
The total power dissipation is 425 mW.
