ON Semiconductor MMSD103T1 High Voltage Switching Diode Datasheet

This document provides information on the maximum ratings, thermal characteristics, and electrical characteristics of the semiconductor component MMSD103T1. The MMSD103T1 is a diode with a continuous reverse voltage of 250V and a peak forward current of 200mA.

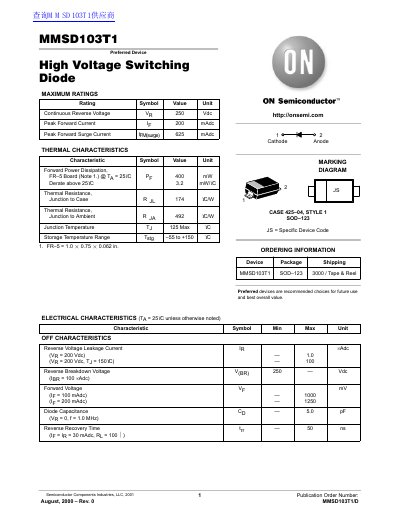

ON Semiconductor MMSD103T1 High Voltage Switching Diode Datasheet - cover page
Brand
MMSD103T1
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
47 KB
Published
11 July, 2012
Updated
29 September, 2023
MD5 checksum
7F0EC166AB5C1DA9046AAFD0D13EB2FF
PDF
ON Semiconductor MMSD103T1 High Voltage Switching Diode Datasheet PDF

About this manual

This document provides technical specifications for the MMSD103T1 High Voltage Switching Diode. Key maximum ratings include a continuous reverse voltage of 250 Vdc and a peak forward current of 200 mAdc. The device operates with a junction temperature range up to 125°C.

What's inside

  • Maximum Ratings
  • Thermal Characteristics
  • Electrical Characteristics
  • Recovery Time Equivalent Test Circuit
  • Forward Voltage and Reverse Leakage Graphs
  • SOD-123 Package Information
  • Surface Mount Board Layout
  • Power Dissipation Calculation
  • Soldering Precautions
  • Package Dimensions

Specifications

Continuous Reverse Voltage250 Vdc
Peak Forward Current200 mAdc
Peak Forward Surge Current625 mAdc
Thermal Resistance Junction to Case174 °C/W
Junction Temperature Max125°C
Reverse Breakdown Voltage250 Vdc
Package TypeSOD-123

Frequently asked questions

What is the maximum junction temperature?

The maximum rated junction temperature is 125°C.

Is preheating required before soldering?

Yes, always preheat the device to minimize thermal stress and avoid damage.
