NTGS3443T1 is a 2 Amp, 20 Volt P-channel TSOP-6 Power MOSFET featuring ultra low RDS(on), higher efficiency extending battery life and miniature TSOP6 surface mount package.

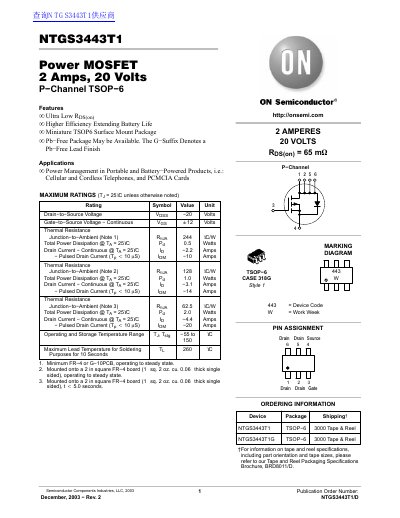

This document is a datasheet for the NTGS3443T1, a P-Channel Power MOSFET designed for power management in portable and battery-powered products such as cellular phones and PCMCIA cards. The device is housed in a miniature TSOP-6 surface mount package and is available in a Pb-free version denoted by the G suffix.
The datasheet provides maximum ratings, electrical characteristics, typical electrical characteristics graphs, and package dimensions. Key specifications include a drain-to-source voltage of -20 Volts and a continuous drain current of -2.2 Amps at 25°C. It also details thermal resistance, capacitance, switching times, and soldering information.
| Drain-to-Source Voltage | -20 Volts |
|---|---|
| Gate-to-Source Voltage | -12 Volts |
| Continuous Drain Current | -2.2 Amps |
| Pulsed Drain Current | -10 Amps |
| Package Type | TSOP-6 |
| Operating Temperature Range | -55 to 150 °C |
The maximum continuous drain current at 25°C is -2.2 Amps.
Yes, the G-suffix denotes a Pb-free lead finish.
It is used for power management in portable and battery-powered products like cellular phones and PCMCIA cards.
