1SMA5926-1SMA5945 is a 1.5 watt surface mount silicon zener diode with a voltage range of 11 to 68 volts.

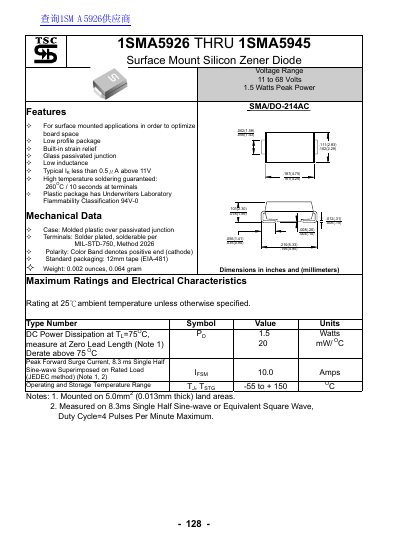

This document provides technical specifications for the 1SMA5926 through 1SMA5945 series of surface mount silicon Zener diodes. The devices feature a voltage range from 11 to 68 volts and are designed for surface mounted applications to optimize board space with a low profile package.
Key features include built-in strain relief, a glass passivated junction, and low inductance. The diodes are rated for a peak power of 1.5 Watts and guarantee high-temperature soldering up to 260°C for 10 seconds. The package is molded plastic with Underwriters Laboratory Flammability Classification 94V-0.
| Voltage Range | 11 to 68 Volts |
|---|---|
| Peak Power | 1.5 Watts |
| Package Type | SMA/DO-214AC |
| Operating Temperature Range | -55 to + 150 C |
| Peak Forward Surge Current | 10.0 Amps |
| Weight | 0.064 gram |
The voltage range covers 11 to 68 Volts.
The device supports a 1.5 Watts Peak Power.
They operate and store between -55 to + 150 C.
