1SMA4741 THRU 1SMA200Z Surface Mount Silicon Zener Diode Datasheet

1SMA4741 THRU 1SMA200Z 1.0W 11-200V Surface Mount Silicon Zener Diode

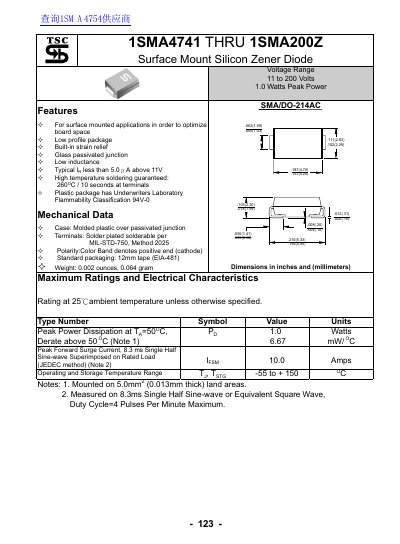

1SMA4741 THRU 1SMA200Z Surface Mount Silicon Zener Diode Datasheet - cover page
Brand
1SMA4741
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
100 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
CA951AEFB5FFB59A37E1957E9BD308C1
PDF
1SMA4741 THRU 1SMA200Z Surface Mount Silicon Zener Diode Datasheet PDF

About this manual

This document provides a technical overview of the 1SMA4741 THRU 1SMA200Z Surface Mount Silicon Zener Diode series. Key features include a voltage range from 11 to 200 volts, a peak power dissipation of 1.0 Watts, and a low profile package designed for surface-mounted applications with built-in strain relief.

What's inside

  • Features
  • Mechanical Data
  • Maximum Ratings
  • Electrical Characteristics
  • Ratings and Characteristic Curves

Specifications

Voltage Range11 to 200 Volts
Peak Power Dissipation1.0 Watts Peak Power
Operating Temperature Range-55 to + 150 oS
Package TypeSMA/DO-214AC
Standard Packaging12mm tape (ElA-481)

Frequently asked questions

What is the peak power rating of this diode?

The device has a peak power dissipation of 1.0 Watts.

What is the voltage range for these Zener diodes?

These diodes cover a voltage range from 11 to 200 Volts.

How much can the power rating decrease per degree above 50°C?

The power must be derated at a rate of 6.67 mW/°C above 50°C.
