SML-210 Series 0805 2.0×1.25 t=0.8mm Standard Type

This document is the characteristics parameters of the SML-210 series LEDs, including electrical, optical characteristics, package size, polarity, package material, working temperature, storage temperature and other information.

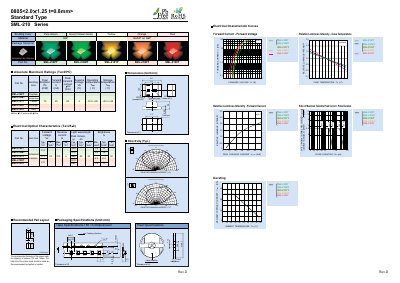

SML-210 Series 0805 2.0×1.25 t=0.8mm Standard Type - cover page
Brand
SML-210
Category
LED Driver Controller
Document type
Datasheet
Language
English
Pages
3
File format
PDF
File size
159 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
91FD91872DAE9FCD1BA50B4C4AC9F275
PDF
SML-210 Series 0805 2.0×1.25 t=0.8mm Standard Type PDF

About this manual

This document provides technical specifications for the ROHM SML-210 Series of standard type LEDs. It details part numbers for various emitting colors including Pure Green, Yellow, Orange, and Red, along with their respective material compositions and package sizes.

The datasheet includes absolute maximum ratings, electrical and optical characteristics, and recommended pad layouts. It also features characteristic curves for forward voltage, luminous intensity, and derating based on ambient temperature, alongside application notes and legal disclaimers regarding product usage.

What's inside

  • Standard Type
  • Absolute Maximum Ratings
  • Electrical Optical Characteristics
  • Dimensions
  • Recommended Pad Layout
  • Packaging Specifications
  • Electrical Characteristic Curves
  • Derating
  • Notes
  • Application circuit diagrams

Specifications

Package Size0805 (2.0 x 1.25 mm)
Operating Temperature-40 to +85 °C
Storage Temperature-40 to +85 °C
Tape SpecificationsT86 <3,000pcs/reel>

Frequently asked questions

What is the recommended thickness for the screen mask used during soldering?

The recommended thickness of the screen mask for soldering is between 100 and 150um.

Download PDF (159 KB)
