This product is the SK 3374.100 RTT air-water heat exchanger produced by FRIEDHELM L O H GROUP, with a rated power of 3000W and a working temperature range of +1°C to +70°C.

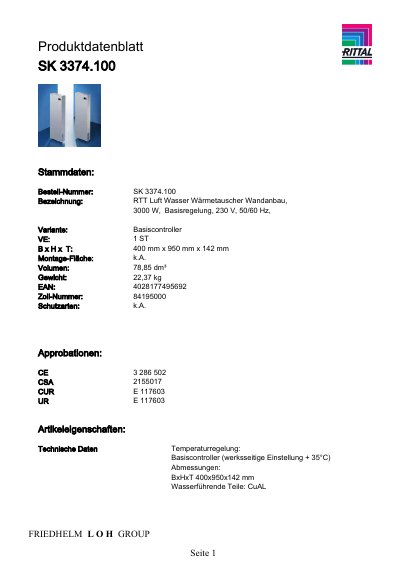

This document is a product data sheet (Produktdatenblatt) for the Rittal SK 3374.100, an air-to-water wall-mounted heat exchanger manufactured by Friedhelm Loh Group. The unit features a basis controller with a default setting of +35°C and operates on a 230 V supply at 50/60 Hz. This manual is written in German.
| Cooling Capacity | 3000 W |
|---|---|
| Dimensions (WxHxD) | 400 mm x 950 mm x 142 mm |
| Operating Pressure (max) | 1 - 10 bar |
| Cooling Medium Temperature Range | +1°C to +70°C |
The unit has a rated cooling capacity of 3000 W.
The maximum allowable operating pressure is 10 bar.
The maximum rated current is 0.55 A.
