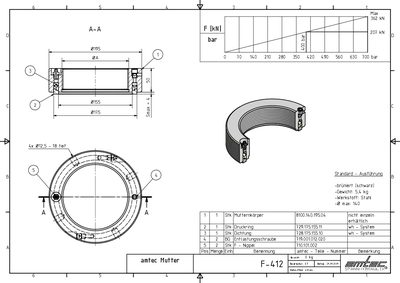

This is the product manual of the F-412 type mother buckle of amtec. The maximum diameter of this product is 140, the weight is 5.4 kg, the material is steel, the product uses standard black oxidation treatment, and the product can withstand the maximum pressure of 400 bar and the maximum force of 207 kN.
This document provides technical specifications for the Amtec F-412, indicating a maximum force of 362 kN. It includes a graphical representation of force versus pressure up to 700 bar.
The document also serves as a parts list or assembly guide, detailing components such as the Muffelk5rper (Muzzle body), Druckring (Pressure ring), and Dichftung (Sealing) with their specific part numbers. This manual is written in German.
| Max. Force | 362 kN |
|---|---|
| Weight | 5,4 kg |
