The document describes a temperature measurement device with features such as high measuring accuracy, cost-effectiveness, rugged design, and epoxy resin encapsulation.

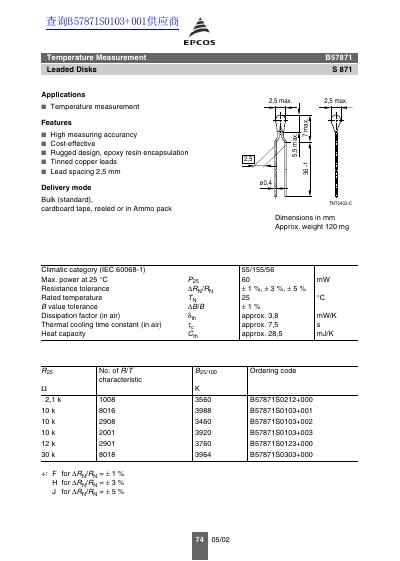

This datasheet describes the EPCOS B57871, a rugged temperature measurement component featuring epoxy resin encapsulation and tinned copper leads. The document provides detailed electrical parameters such as resistance tolerance (±1%, ±3%, or ±5%) and thermal cooling time constants.
The document also outlines reliability data based on IEC standards for storage in dry heat, damp heat, rapid temperature cycling, endurance, and long-term stability. This manual is written in German.
| Lead spacing | 2,5 mm |
|---|
The lead spacing is 2.5 mm.
The endurance test is conducted at a maximum power of 450 mW for 1000 hours.
