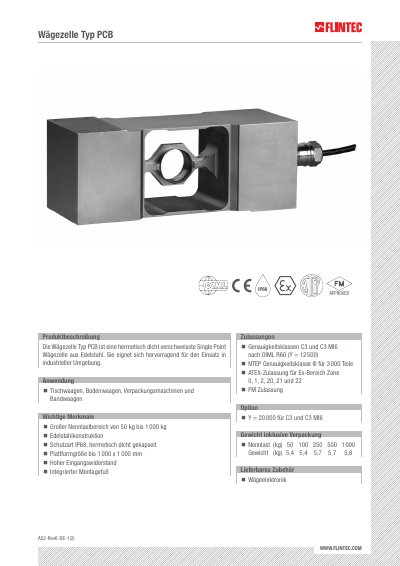

The PCB type load cell is a stainless steel single point load cell suitable for industrial environments. It offers a large rated load range of 50 kg to 1000 kg, IP68 protection class, high input resistance and integrated mounting foot.
This document provides technical specifications for the Flintec PCB series of load cells. It details performance characteristics such as non-linearity, hysteresis, creep error, and temperature coefficients according to OIML R60 standards.
The datasheet includes mechanical dimensions, maximum plate sizes based on capacity, material information (17-4 PH stainless steel), and protection ratings up to IP69K. It also lists specific mounting torque values for various models and describes the 4-wire or 6-wire electrical connection scheme with color-coded wires. This manual is written in German.
| Capacity (Nennlast) | 50, 100, 250, 500, 1000 kg |
|---|---|
| Accuracy Class (Genaugkeitsklasse) | C3 | C3 MI6 |
| Max. Number of Divisions (nV) | 3000 |
| Min. Division Value (Vmn) | 12500 nV |
| Temperature Coefficient of Zero (Co) | <= 0.0112 %/°C |
| Temperature Coefficient of Span (TCRo) | <= 0.0100 %/°C |
| Combined Error (%RO) | <= 0.0500 |
| Linearity Deviation (%RO) | <= 0.0400 |
| Hysteresis (%RO) | <= 0.0400 |
| Creep Error (30 min) / DR | <= 0.0600 |
| Material | Stainless Steel 17-4 PH (1.4548) |
| Protection Rating | IP68 / IP69K |
| Operating Temperature Range | -10..+40 °C |
| Usage Temperature Range | -40..+80 °C (ATEX -40..+60) |
| Max. Plate Size for 1000 kg | 1000 x 1000 mm |
The accuracy class according to OIML R60 is C3 or C3 MI6.
The load cells are made of Stainless Steel 17-4 PH.
Green is Supply, Blue is Sense, White is Signal, Brown is -Sense, Black is -Supply.
