The UNIFLEX CI 45 is a multi-function measurement converter for precise and cost-effective signal detection and conversion. It has high accuracy and high cost-effectiveness, and can be used for various electrical signal detection and conversion. This measurement converter is equipped with programmable functions and communication options to meet various application needs.

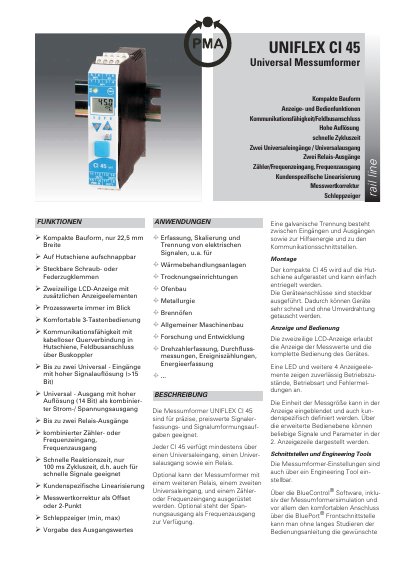

The PMA UNIFLEX CI 45 is a compact universal transmitter designed for precise signal acquisition and conversion tasks. It features a compact housing width of 22.5 mm and can be snapped onto a DIN rail. The device includes a two-line LCD display and comfortable 3-button operation for easy configuration. This manual is written in German.
| Width | 22.5 mm |
|---|---|
| Cycle Time | 100 ms |
| Resolution | >15 Bit |
| Output Resolution | 14 Bit |
| Input Resistance | >1 MΩ |
| Supply Voltage | 24VDC |
| Logic Voltage | 3V...5V |
| Max Frequency | 100 kHz |
The device has a cycle time of only 100 ms, making it suitable for fast signals.
The maximum frequency output is 100 kHz when using a 1:1 rectangular wave.
