TKF-085b-TB38-MODUL is an 85-key flat input keyboard with an integrated 38mm trackball from InduKey. It features positive tactile feedback and is resistant to dirt, dust and liquid (IP65). It can be connected to a computer via a PS/2 or USB interface.

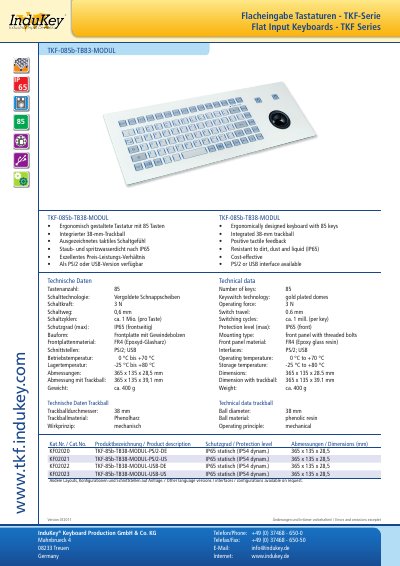

This document is a product datasheet for the InduKey TKF-085b-TB38-MODUL, an ergonomically designed flat input keyboard. It features 85 keys with gold-plated domes and an integrated 38mm mechanical trackball. The device is built for industrial environments, offering a dust and liquid-resistant IP65 rating and available in both PS/2 and USB interface versions. This manual is written in German.
| Number of keys | 85 |
|---|---|
| Keyswitch technology | gold plated domes |
| Operating force | 3 N |
| Switch travel | 0.6 mm |
| Switching cycles | ca. 1 million (per key) |
| Protection level | IP65 (front) |
| Interfaces | PS/2; USB |
| Operating temperature | 0 °C to +70 °C |
| Storage temperature | -25 °C to +80 °C |
| Dimensions | 365 x 135 x 28.5 mm |
| Weight | ca. 400 g |
| Trackball diameter | 38 mm |
The keyboard has 85 keys.
The integrated trackball has a diameter of 38 mm.
The keyboard can operate at temperatures up to +70 °C.
