ELMESS DHF02B1-1.5-T6 Heating Inset Data Sheet

This document is the wiring diagram of the electric heater, mainly including the technical parameters of the electric heater, wiring connection diagram, installation position, etc.

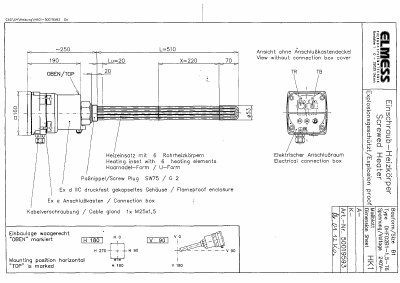

ELMESS DHF02B1-1.5-T6 Heating Inset Data Sheet - cover page
Brand
ELMESS
Category
Heater
Document type
Product Leaflet
Language
German
Pages
2
File format
PDF
File size
51 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
549E84FFC4485B8B4F207ED6883D7E78
PDF
ELMESS DHF02B1-1.5-T6 Heating Inset Data Sheet PDF

About this manual

This document provides technical specifications for the ELMESS DHF02B1-1.5-T6 heating inset, which features six tube heating elements in a hairpin or U-shape configuration. The unit is designed with an Ex d IIC pressure-tight enclosure and includes a connection box suitable for horizontal mounting. This manual is written in German.

What's inside

  • Heating Inset
  • Electrical Connection
  • Mounting Position
  • Electrical Diagram
  • Rated Power
  • Rated Voltage
  • Protection Requirements

Specifications

Number of heating elements6
Rated power1.5 kW
Rated voltage240 V 1/N/PE 50/60 Hz
Rated current6.3A
Backup fuse rating10A

Frequently asked questions

How many heating elements does this unit contain?

The heating inset contains 6 heating elements.

What is the rated power of the heater?

The rated power is 1.5 kW.

What is the rated voltage for this heater?

The rated voltage is 240 V 1/N/PE 50/60 Hz.

What is the minimum fuse size required for protection?

A 10A back up fuse is required for protection.
