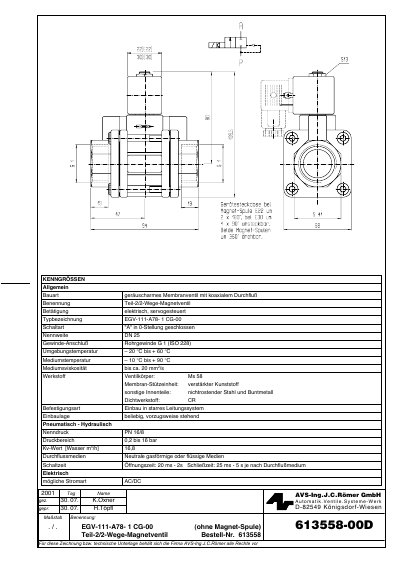

This document describes the features and characteristics of the product 2001 Tag Name gez. 30.07. K.Oxner gepr. 30.07. H.Töpfl Maßstab Benennung: . / . EGV-111-A78-1 CG-00 (ohne Magnet-Spule) 613558-00D Teil-2/2-Wege-Magnetventil. The product is a servo-controlled 2/2-way solenoid valve with a quiet membrane design and coaxial flow. It is suitable for neutral gas or liquid media and has a Kv value of 16.8 and a pressure range of 0.2 to 16 bar. The operating temperature is -20°C to +60°C, and the media temperature is -10°C to +90°C. The product has a viscosity limit of approximately 20 mm2/s. The valve body is made of Ms 58, the membrane support unit is made of reinforced plastic, and other internal parts are made of stainless steel and non-ferrous metal. The sealing material used is CR.
This document provides technical data for the Roemer EGV-111-A78-1CG-00, a noise-free membrane solenoid valve with coaxial flow. The device is designed as an electrically operated, servo-controlled 2/3-way valve suitable for neutral gaseous or liquid media in pneumatic and hydraulic systems.
Key specifications include a nominal size of DN 25 (G 1 thread connection) and a rated pressure of PN 168. The operating temperature range is -20°C to +60°C, while the medium temperature can reach up to +90°C. The valve features a flow coefficient (Kv) of 16.8 for water. This manual is written in German.
| Valve Type | Noise-free membrane valve with coaxial flow |
|---|---|
| Way Configuration | 2/3-way |
| Control Type | Electrically operated, servo-controlled |
| Switching Mode | Mode "A" closed in 0 position |
| Nominal Size | DN 25 |
| Thread Connection | G 1 (ISO 228) |
| Ambient Temperature Range | -20°C to +60°C |
| Medium Temperature Range | -10°C to +90°C |
| Rated Pressure (PN) | 168 bar |
| Operating Pressure Range | 0.2 to 16 bar |
| Flow Coefficient (Kv) | 16.8 [Water m³/h] |
| Switching Time (Opening) | 20ms - 2s |
| Switching Time (Closing) | 25ms - 5s |
The nominal size (Nennweite) of the valve is DN 25.
The medium temperature must be between -10 °C and +90 °C.
The nominal pressure (Nenndruck) of the valve is PN 16 bar.
