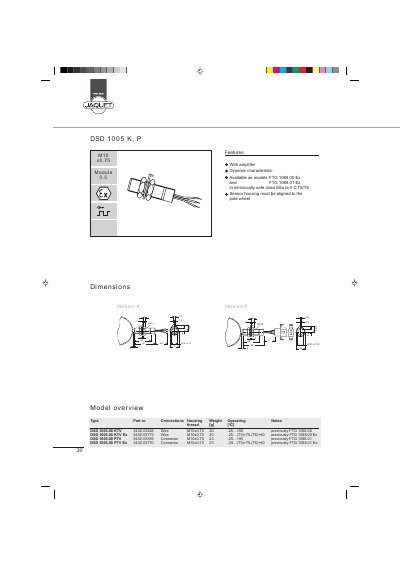

The DSD 1005 K, P differential ferrostat sensor has an amplifier, dynamic characteristic and is available as models FTG 1088.00 Ex and FTG 1088.01 Ex with intrinsic safety class EEx ia II C T5/T6. The sensor housing must be aligned to the pole wheel.
This document provides technical specifications for the DSD 1005 Differential Ferrostat Sensor, available in Version K and Version P. It details the sensor's electrical characteristics, including a 5V supply voltage with reverse polarity protection and a square wave voltage output. The sensor is designed to work with ferromagnetic toothed wheels and offers various housing and connection options.
| Supply voltage | 5 V+10%, max. load 12 V |
|---|---|
| Current consumption | max. 16 mA |
| Protection class (head) | IP68 |
| Protection class (wire connection) | IP67 |
| Insulation | 500V/50 Hz/1 min |
The supply voltage is 5 V+10%, with a maximum load of 12 V.
The pole wheel must be a ferromagnetic toothed wheel with a module greater than 0.5 and a minimum tooth width of 3 mm.
The output is a square wave voltage with a mark-space ratio of approximately 1:1.
