L&K Anlagentechnik Pumpen Serie 40.00 is a pump series from L&K Anlagentechnik.

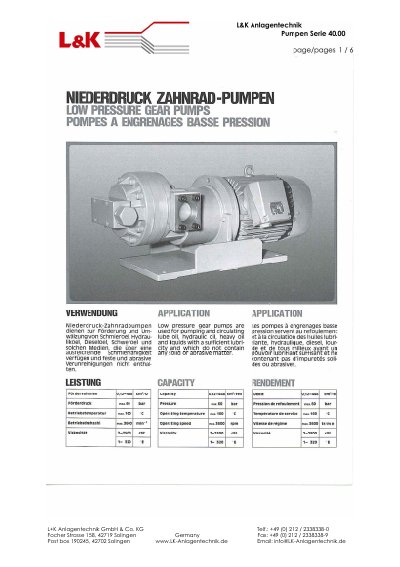

This document provides technical information for the L&K Anlagentechnik 40.00 series of low pressure gear pumps. These pumps are designed for pumping and circulating lubricating oil, hydraulic oil, diesel oil, heavy oil, and other liquids with sufficient lubricity that do not contain solid or abrasive matter. The modular design allows for high adaptation to desired flow rates and the combination of different pump sizes.
| Capacity | 0.12-448 cm³/rev |
|---|---|
| Max Pressure | 60 bar |
| Max Operating Temperature | 160 °C |
| Max Operating Speed | 3600 rpm |
| Viscosity Range | 2-2500 cSt |
| Shaft Sealing Options | Shaft sealing ring W, axial face seal GL, stuffing box seal St |
They are used for pumping and circulating lube oil, hydraulic oil, heavy oil and liquids with a sufficient lubricity and which do not contain any solid or abrasive matter.
It allows a high degree of adaptation to desired flow rates as well as the combination of the different pump sizes.
