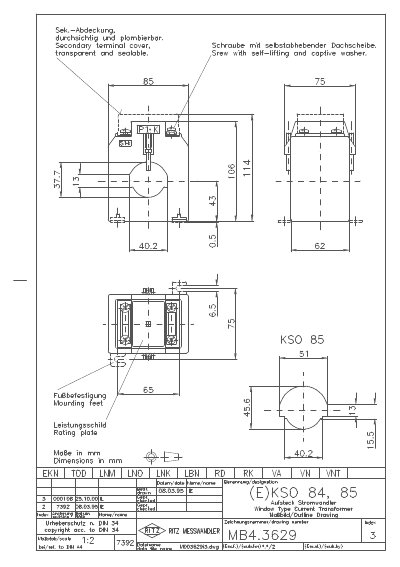

This document provides technical specifications and outline drawings for the RITZ KSO 84 and KSO 85 series of window type current transformers. It details the physical construction, including the transparent and sealable secondary terminal cover and the screw with a self-lifting captive washer.
The datasheet includes a rating plate layout and a table of dimensions in millimeters for various models within the series, such as EKN, TOD, LNM, LNO, LNK, LBN, RD, RK, VA, VN, and VNT. It also lists the drawing number and copyright information according to DIN 34.
| Product Type | Window Type Current Transformer |
|---|---|
| Cover Type | Transparent and sealable |
| Screw Type | Screw with self-lifting and captive washer |
The document describes a Window Type Current Transformer.
The secondary terminal cover is transparent and sealable.
