This document provides the technical parameters of the Sh 80 B 8 three-phase asynchronous motor, including rated power, rated speed, rated voltage, rated frequency, rated torque, rated current, power factor, efficiency, locked rotor current, locked rotor torque, overload torque, moment of inertia, weight, ambient temperature, relative humidity, altitude, installation arrangement, cooling method, protection class, stator circuit, number of terminals, insulation class, rotation direction, bearings, etc.

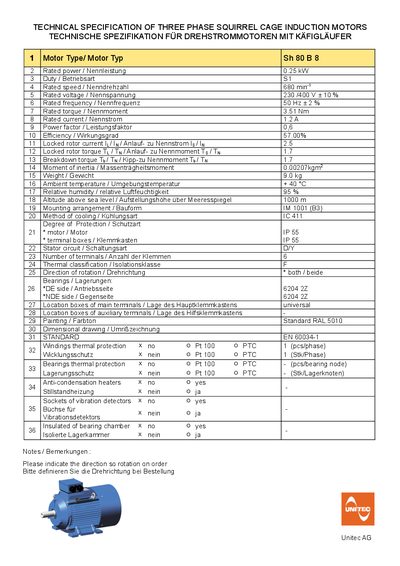

This document provides technical specifications for the Unitec AG Sh 80B8 three-phase squirrel cage induction motor. The motor is rated at 0.25 kW with a duty cycle of S1 and operates on a voltage of 230/400 V at 50 Hz. This manual is written in German.
| Motor Type | Sh 80B8 |
|---|---|
| Rated Power | 0.25 kW |
| Duty | S1 |
| Rated Speed | 680 min-1 |
| Rated Voltage | 230/400 V + 10 % |
| Rated Frequency | 50 Hz +2 % |
| Efficiency | 57.00% |
| Degree of Protection (Motor) | IP 55 |
| Mounting Arrangement | IM 1001 (B3) |
The rated power is 0.25 kW.
The rated voltage is 230 /400 V+ 10 %.
The rated speed is 680 min!
