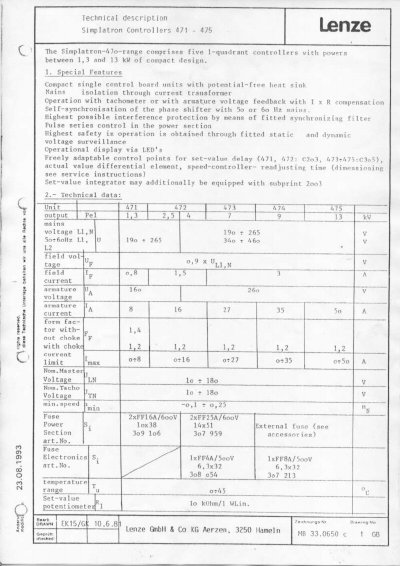

The Simplatron-470-range comprises five single-quadrant controllers with powers between 1.3 and 13 kW of compact design. These units feature potential-free heat sinks, mains isolation through current transformers, and operational display via LEDs. They support operation with tachometer or armature voltage feedback with I x R compensation and include self-synchronisation of the phase shifter with 50 or 60 Hz mains.
| Output Power | 1.3 to 13 kW |
|---|---|
| Mains Voltage L1,N | 190 + 265 V |
| Field Voltage | 0.59 % Ua |
| Field Current | 0.8 to 3 A |
| Armature Voltage | 160 to 260 V |
| Form factor with choke | 1.2 |
| Current limit max | 0.8 to 0.50 A |
| Nominal Master Voltage | 10 + 180 V |
| Nominal Tacho Voltage | 10 + 180 V |
| Minimum Speed | 1 + 0.25 % |
| Temperature range | 0 to 45 C |
The range comprises controllers with powers between 1.3 and 13 kW.
It features self-synchronisation with 50 or 60 Hz mains.
The controllers support operation with tachometer or with armature voltage feedback with I x R compensation.
The ambient temperature must not exceed 45°C.
